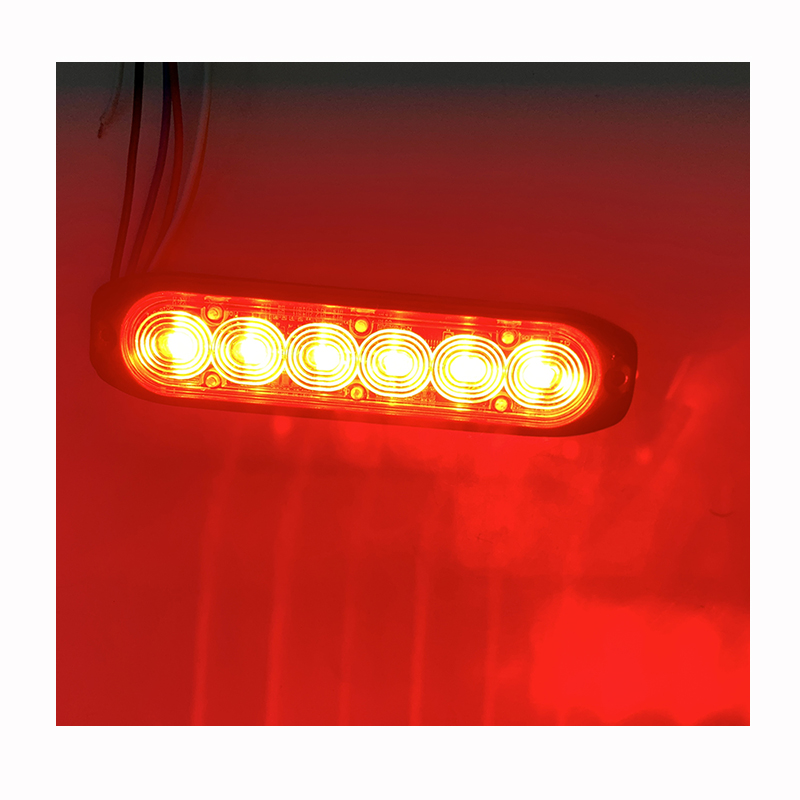

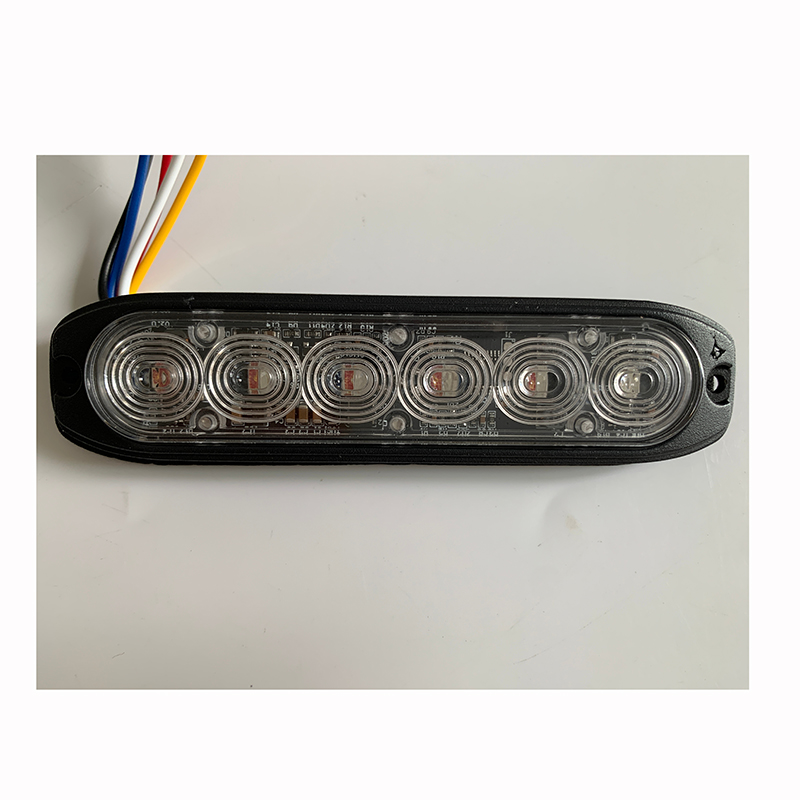

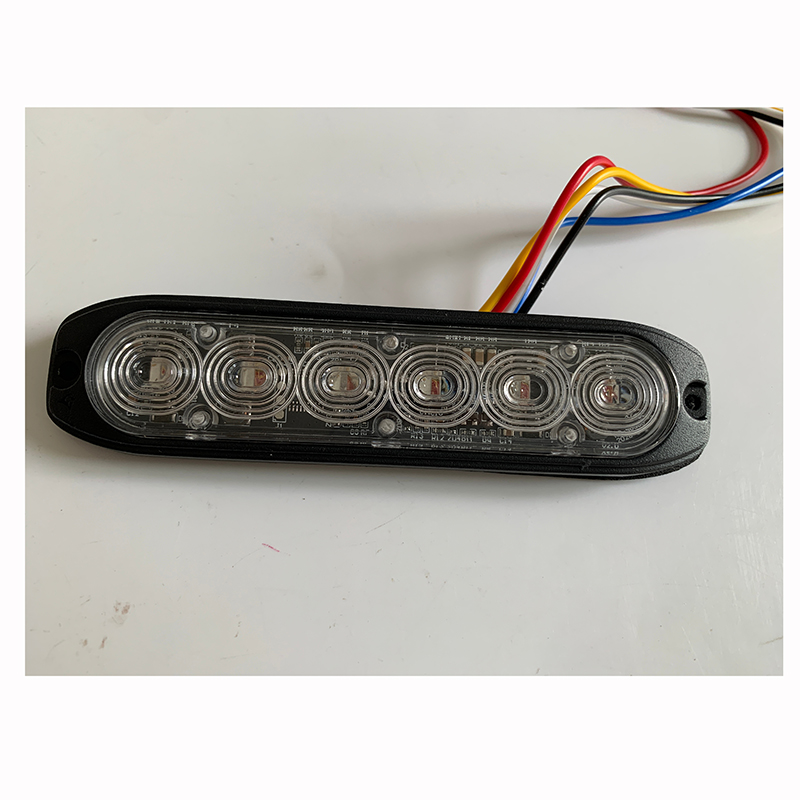

XT6B LED module light

LED head Lights & Dash Deck visor Lights For Sale| high quality LED module signal lights from China parz Industry

chat us now：

Electrical Specifications

Parameter	Specification	Remark
Rated Operating Voltage	DC 12V / 24V (auto-ranging)	Input range: 9–30V
Power Consumption	18W	Instantaneous peak power
LED Type	3W × 6 LEDs	Chip size ≥ 38µ
Light Source Configuration	Linear lens array, 6 LEDs	High-efficiency optical design
Continuous Operation	≥ 200 hours	Under standard conditions

Parameter

Specification

Remark

Rated Operating Voltage

DC 12V / 24V (auto-ranging)

Input range: 9–30V

Power Consumption

18W

Instantaneous peak power

LED Type

3W × 6 LEDs

Chip size ≥ 38µ

Light Source Configuration

Linear lens array, 6 LEDs

High-efficiency optical design

Continuous Operation

≥ 200 hours

Under standard conditions

Optical & Control Features

Parameter	Specification
Available Colors	Red / Blue / Yellow / White (selectable)
Flash Patterns	21 Flash patterns (programmable)
Control Logic	Self-flash on power-up; mode switch via blue wire; sync via yellow wire; steady-on / dimming via white wire
Synchronization	Multiple units sync when yellow wires are connected together
Custom Programming	Supports left/right versions, dual-color switching available

Parameter

Specification

Available Colors

Red / Blue / Yellow / White (selectable)

Flash Patterns

21 Flash patterns (programmable)

Control Logic

Self-flash on power-up; mode switch via blue wire; sync via yellow wire; steady-on / dimming via white wire

Synchronization

Multiple units sync when yellow wires are connected together

Custom Programming

Supports left/right versions, dual-color switching available

Mechanical & Appearance Specifications

Parameter	Specification
Housing Material	Lens: UV-resistant PC (Mitsubishi S2000UR); Base: Black powder-coated aluminum
Dimensions	L 122mm × W 29mm × H 8.1mm
Appearance Quality	The surface is free of white spots, pockmarks, color differences, scratches, stains, cracks and deformations

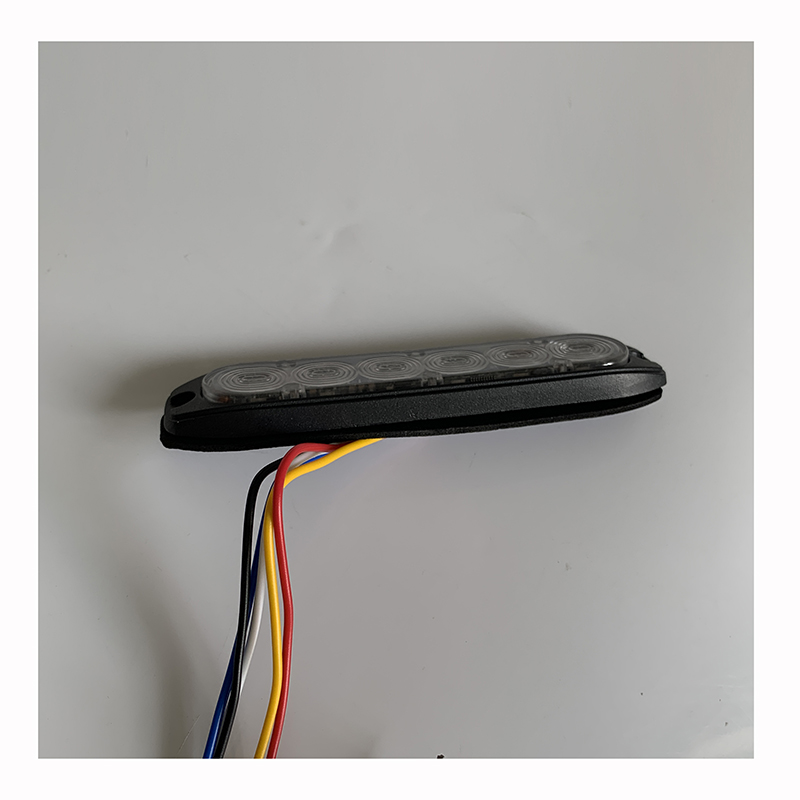

Cable	5-wires, 30cm length, 16/0.15 tinned copper, colors: Red, Black, Blue, Yellow, White
Ingress Protection	IP66

Parameter

Specification

Housing Material

Lens: UV-resistant PC (Mitsubishi S2000UR); Base: Black powder-coated aluminum

Dimensions

L 122mm × W 29mm × H 8.1mm

Appearance Quality

The surface is free of white spots, pockmarks, color differences, scratches, stains, cracks and deformations

Cable

5-wires, 30cm length, 16/0.15 tinned copper, colors: Red, Black, Blue, Yellow, White

Ingress Protection

IP66

Packaging Information

Parameter	Specification
Inner Box Size	15cm × 4cm × 3cm
Outer Carton Size	61.5cm × 21cm × 16.5cm
Quantity per Carton	100 pcs
Packaging Material	Outer: imported white kraft board; Inner: eco-friendly kraft paper
Branding	No logo; custom printing available upon request
Net Weight / Gross Weight	0.08 kg / 0.1 kg /pc

Parameter

Specification

Inner Box Size

15cm × 4cm × 3cm

Outer Carton Size

61.5cm × 21cm × 16.5cm

Quantity per Carton

100 pcs

Packaging Material

Outer: imported white kraft board; Inner: eco-friendly kraft paper

Branding

No logo; custom printing available upon request

Net Weight / Gross Weight

0.08 kg / 0.1 kg /pc

Wiring & Functional Description

Wire Color	Function
Red / Black	Power input (+ / –)
Blue	Mode selection (tap to ground to cycle through 21 patterns)
Yellow	Sync line (connect all yellow wires together for synchronized flashing)
White	Steady-on / dimming control (connect to positive for constant light or reduced brightness, depending on firmware)

Wire Color

Function

Red / Black

Power input (+ / –)

Blue

Mode selection (tap to ground to cycle through 21 patterns)

Yellow

Sync line (connect all yellow wires together for synchronized flashing)

White

Steady-on / dimming control (connect to positive for constant light or reduced brightness, depending on firmware)

Note: The blue wire is for signal control only. Do not connect it to positive voltage.
